In an era of explosive data traffic growth, the 200G QSFP56 optical module, with its efficient PAM4 modulation technology and diverse interface options, is becoming a critical bridge for data centers’ transition from 100G to 400G.
With the rapid development of cloud computing, artificial intelligence, and 5G networks, global data traffic is growing exponentially. This growth is driving an increasingly urgent need for high-speed interconnect solutions in data centers.
With 100G technology already widespread and 400G still relatively immature, the 200G QSFP56 optical module, with its balanced performance and cost-effectiveness, is an ideal choice for data center upgrades.
Technological Innovation: PAM4 Modulation and QSFP56 Form Factor

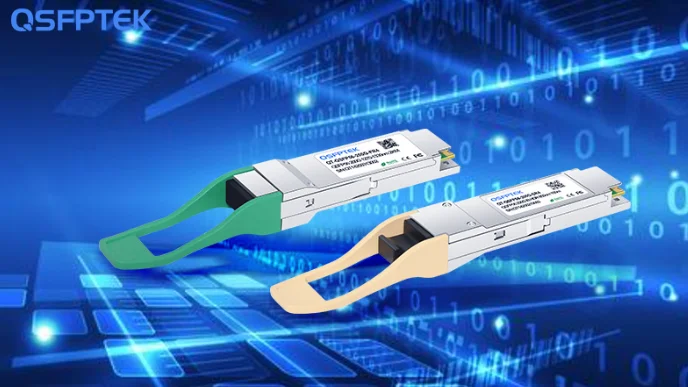

The 200G QSFP56 optical module is an upgraded version of the 40G QSFP+ and 100G QSFP28 optical modules, utilizing the hot-swappable QSFP56 form factor. This module features four independent transmit and receive optical signal channels, each capable of up to 50G transmission speeds.
Compared to traditional NRZ (Non-Return to Zero) modulation technology, the 200G QSFP56 optical module utilizes PAM4 (quad-level pulse amplitude modulation) technology. PAM4 modulation doubles the bit rate without increasing bandwidth, significantly reducing transmission channel losses.
This technological advantage eliminates the need for eight 25G channels to achieve 200G transmission. This not only saves fiber costs and reduces link loss, but also allows for more data to be transmitted over existing fiber.
Diverse 200G QSFP56 Module Types
Depending on transmission distance and application scenarios, 200G QSFP56 optical modules are available in the following types:
200G QSFP56 SR4: Suitable for short-distance transmission, it features a four-channel full-duplex transceiver module with an MPO 12-core interface and a center wavelength of 850nm. Paired with OM4 or OM5 multimode fiber, it offers a transmission distance of up to 100 meters and is primarily used for intra-rack connections in data centers.
200G QSFP56 FR4: Features a dual LC connector, operates at a CWDM4 wavelength, and uses an uncooled EML CWDM transmitter. Transmission distances of up to 2km over dual-core single-mode fiber are possible, effectively reducing customers’ fiber cabling costs.
200G QSFP56 LR4: The most common 200G optical module for long-haul DCI interconnects, it features a dual LC connector and operates at an LDWM4 wavelength. Transmission distances of up to 10km/20km over single-mode fiber are possible.
200G QSFP56 ER4: Designed for ultra-long-haul transmission, it features a dual LC connector and operates at an LDWM4 wavelength. It utilizes 50G PAM4 and LWDM4 technologies, achieving a maximum transmission distance of 40km over single-mode fiber.
Application Scenarios and Advantages Analysis
200G QSFP56 optical modules demonstrate significant advantages in multiple application scenarios. In data center interconnects, they efficiently connect servers and switches, supporting high-speed data transmission. In cloud computing infrastructure, they provide high-bandwidth, low-latency connectivity solutions for large-scale data centers.
For 5G network backhaul, modules such as 200G QSFP56 FR4 provide sufficient bandwidth and transmission distance. In high-performance computing environments, these modules meet the high-speed interconnect requirements of supercomputers and AI training clusters.
The power consumption of 200G QSFP56 optical modules varies by type: SR4 modules typically consume ≤4.5W, while FR4 modules consume a higher power consumption of approximately 6.5W-7W.
Future Outlook and Challenges
With the continued development of data centers, the 200G QSFP56 optical module market is expected to maintain steady growth. However, this sector also faces several challenges, including further reducing power consumption, improving integration, and achieving seamless compatibility with existing infrastructure.
Technological innovation will continue to drive optical module performance improvements, including more efficient modulation techniques, advanced optoelectronic integration solutions, and smarter management capabilities. Cost optimization is also a key industry development direction, with efforts to reduce the cost per bit transmitted through scaled production and material innovation.
As a key technology in the transition to 400G and higher speeds, the 200G QSFP56 optical module will continue to play a vital role in the coming years, helping data center operators balance performance requirements with return on investment.
Last Word
With the increasing adoption of 400G technology, the 200G QSFP56 optical module has not slowed down. On the contrary, it has found a new niche in data centers pursuing higher density and lower power consumption.
Emerging co-packaged optics (CPO) technology, which tightly integrates the optical engine with the switch chip, has the potential to transform the form factor of optical modules. However, the hot-swappable nature and reliability of the QSFP56 ensure its irreplaceable position for the foreseeable future.
